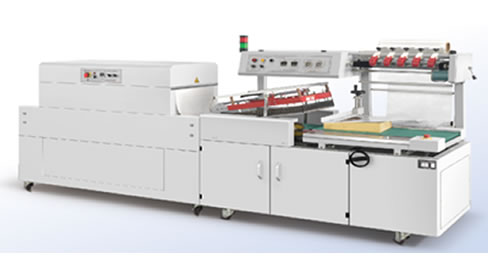

BS-400LA+BMD-450C L-type automatic heat shrink packaging machine (fully enclosed)
Scope of application:
Single or collective packaging of pharmaceuticals, food, beverages, stationery, printed matter, cosmetics, gifts, electronic products, toys, auto parts, tableware and other products。
Technical parameter:
|
BS-400LA |
|
|
Sealing form |
L type fully enclosed |
|
power supply |
380V/50-60Hz/3phase |
|
top speed |
10-35package/min |
|
packing height |
≤125mm |
|
Packaging width |
≤350mm |
|
Package dimensions |
Width+Height≤400mm Length+Height≤480mm |
|
use film |
POF half-folding film |
|
max film |
530mm(width)×280mm(outer diameter) |
|
total power |
1.5kW |
|
Platform height |
780-850mm |
|
air pressure |
≤0.5MPa(5 bar) |
|
Sealing and cutting system |
Constant temperature heating system, easy to replace the cutter, no smoke and no odor when sealing and cutting |
|
main material |
carbon steel |
|
Total Weight |
300kg |
|
BMD-450C |
|
|
power supply |
380V/50-60Hz/3phase |
|
Furnace size |
1200mm(L), furnace mouth 400(W)×220(H)mm |
|
transfer speed |
adjustable |
|
conveyor belt |
Chain conveyor belt, roller sleeve silicone tube |
|
total power |
7kW |
|
Platform height |
780-850mm |
|
main material |
carbon steel |
|
Total Weight |
160kg |
